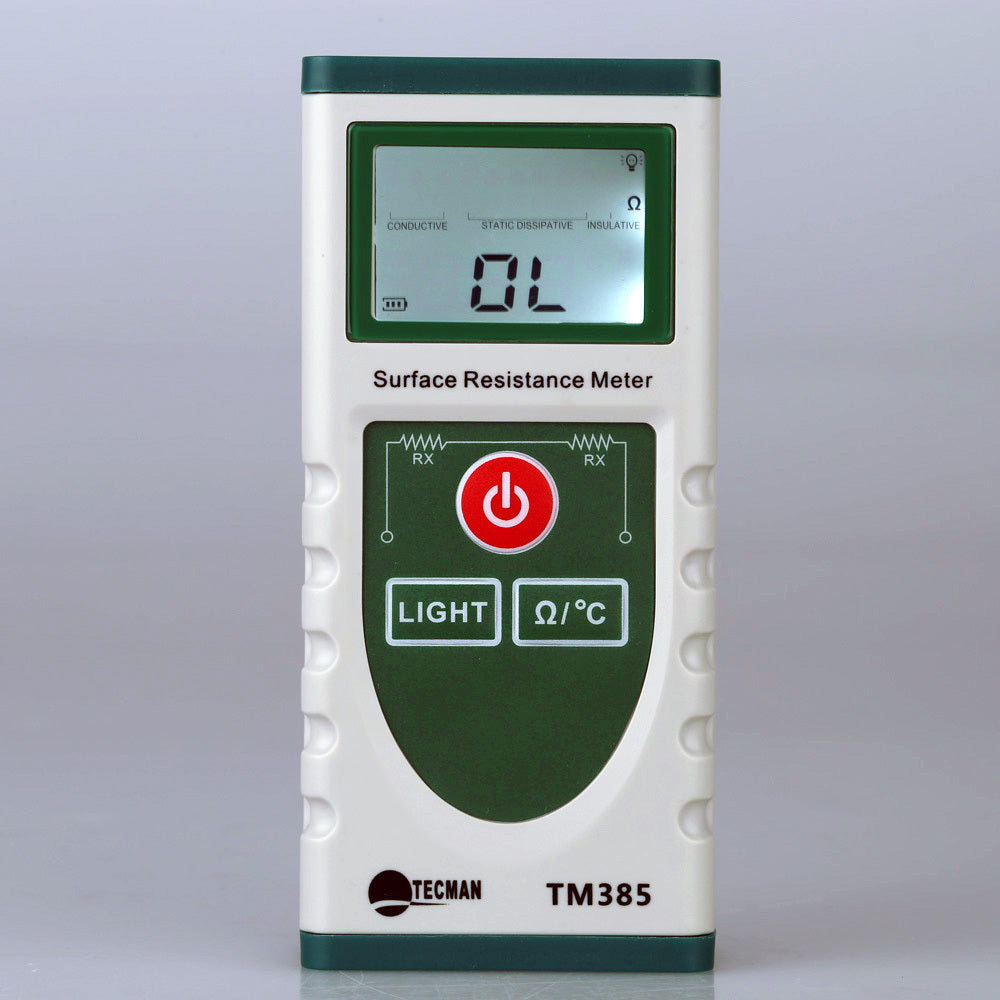

Digital Surface Resistance Meter Tester

Tecman Digital Surface Resistance Tester Meter is simple to use, only need to boot the instrument into or is clamped by the measurement of material can be data measurement, and is equipped with LCD backlight and ambient temperature display function.

It can measure the resistance value on the surface of the object by putting two parallel electrodes close to surface of the object to be measured, so as to judge whether the measured object is a conductive, static or insulating material; Meanwhile the counter can be used to measure the resistance to ground of the object, which is specifically applied to various anti-static fields.

Features:

• Measures the value of the surface resistance and the grounding resistance.
• Measures the ambient temperature.
• High precision and with the compensation function.
• It is possible to measure conduction resistance area type static thread type and type of insulation material.
• LCD backlight for easy and clear reading

Specifications:

• Resistance Measuring Range: 10 ^ (3) -10 ^ (12) ohm
• Repeat accuracy (+/-) 5%
• Temperature measurement range: 0-50 ° C
• Repeat accuracy (+/-) 2 ° C
• Measuring accuracy (+/-) 10%
• Resistance measurement Response time: 1 s
• Humidity: 0% -70% non-condensing
• Operating temperature: 0-40 ° C
• Storage temperature: -10 to 70 ° C
• Power supply: 9 V 6F22 (Included)
